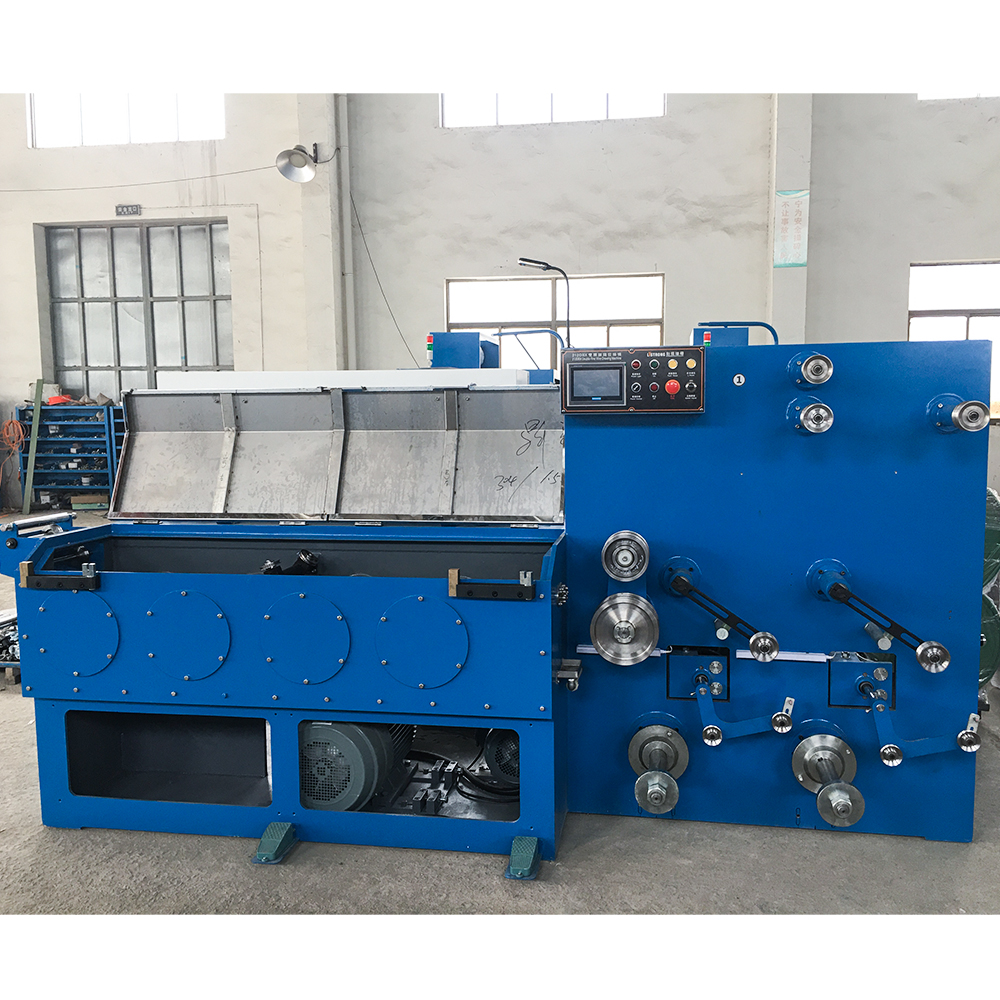

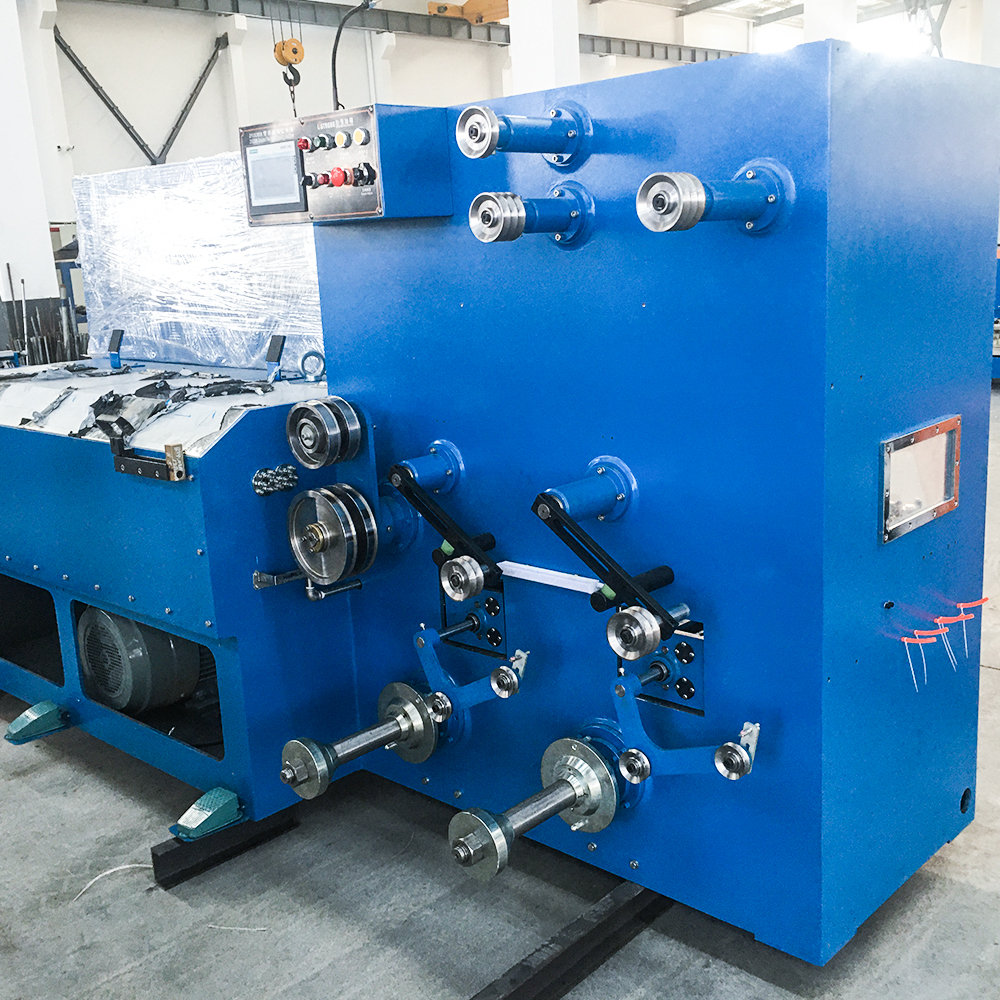

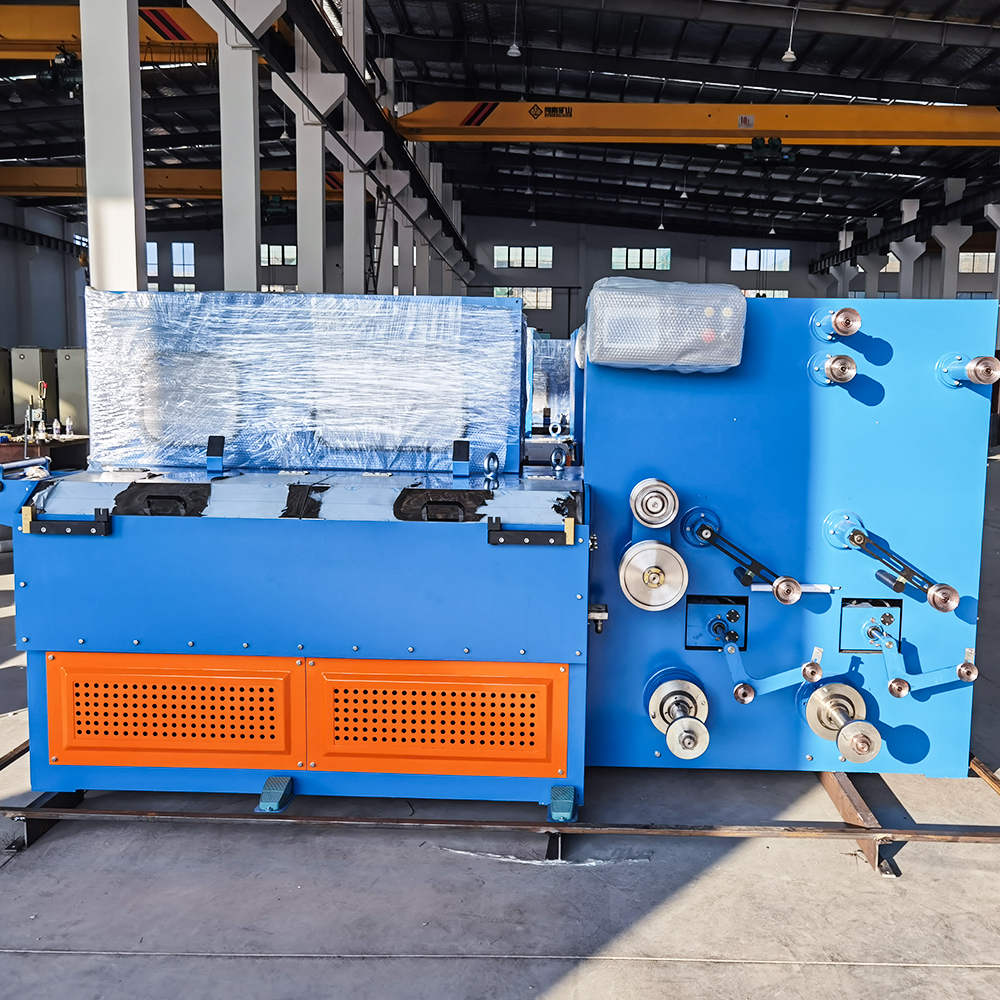

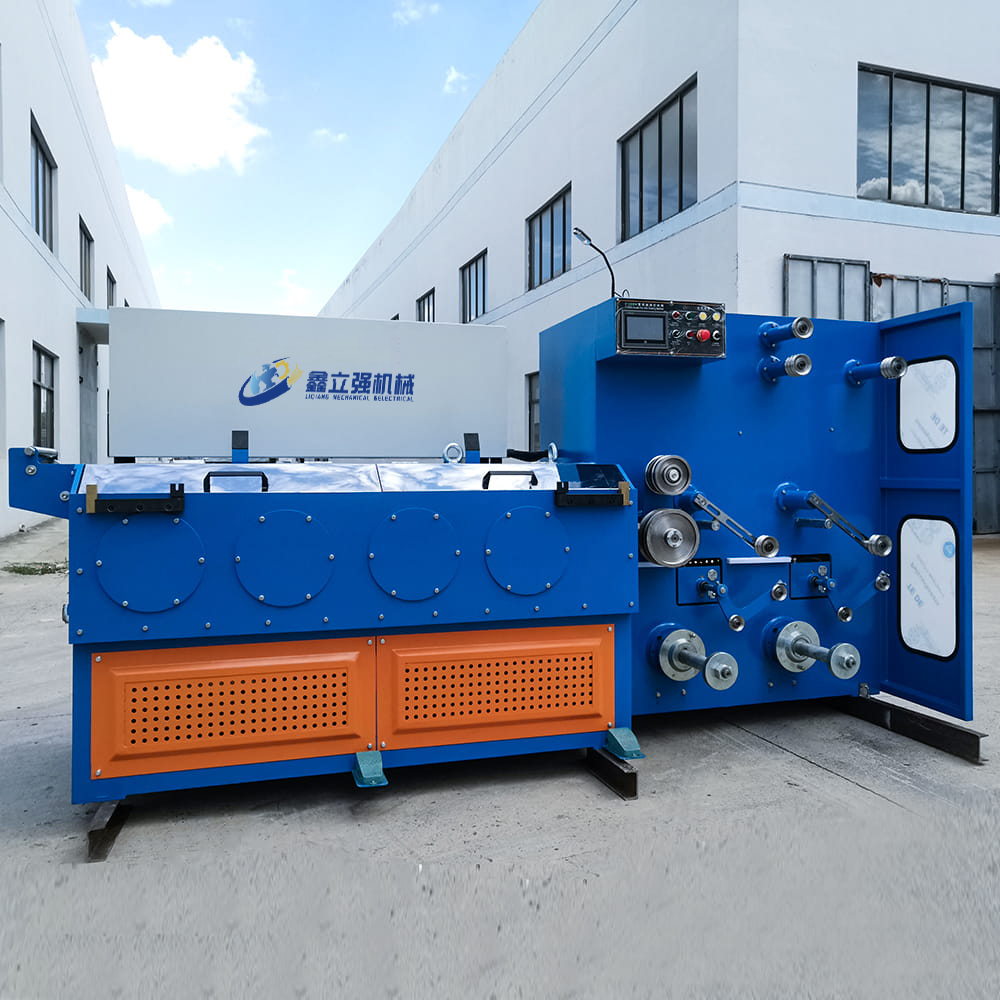

21/2DBX Steel wire pulling machine with high speed (2 lines)
21/2DBX Steel wire pulling machine with high speed (2 lines)
21/2DBX Steel wire pulling machine with high speed (2 lines)
21/2DBX Steel wire pulling machine with high speed (2 lines)
21/2DBX Steel wire pulling machine with high speed (2 lines)
21/2DBX Steel wire pulling machine with high speed (2 lines)
21/2DBX Steel wire pulling machine with high speed (2 lines)
21/2DBX Steel wire pulling machine with high speed (2 lines)
21/2DBX Steel wire pulling machine with high speed (2 lines)
21/2DBX Steel wire pulling machine with high speed (2 lines)

21/2DBX Steel wire pulling machine with high speed (2 lines)

This type of machine is equipped with two production lines, enabling it to simultaneously draw and anneal stainless-steel wire, reducing the diameter from Φ0.5 - Φ1.0 to Φ0.1 - Φ0.3. It offers advantages such as high-speed operation, energy efficiency, space conservation, and labor savings.
Get A Quote
  • Parameter
  • Contact Us

  • 1. Equipped with a double drawing and annealing line, the machine is more efficient.

    2. It is heavy-duty, stable, and durable.

    3. The full-immersion design enables the wire to achieve the best finishing surface and ensures a long working life.

    4. Dual inverters and motors are used to control the take-up process. The drawing is stable, with independent tension control, making the wire less likely to break.

    5. With over 18 years of experience in production, the machine exhibits excellent running performance.

    6. There are two take-up options available. The output wire can be spooled on the same bobbin or on two separate bobbins.

    Model: 21-2DBX
    Inlet diameter: Φ0.5-0.1mm
    Outlet diameter: Φ0.1-0.3mm
    Quantity of drawing dies: 21
    Slip ratio of main machine: 13%
    Slip ratio of last die: 8%
    Max. Drawing speed: 600m/min
    Using motor/ main motor: 18.5kw
    Usage: Bare steel wire drawing
    Correction system: Automatically control
    Annealing method: DC three section annealing
    Brake: Pneumatic brake
    Voltage: 380V or Customized
    Colour: As customer's need
    Brand: Liqiang or OEM
    Operation direction: Right hand machine
