17DCT Medium wire complete copper wire drawing equipment system
17DCT Medium wire complete copper wire drawing equipment system
17DCT Medium wire complete copper wire drawing equipment system
17DCT Medium wire complete copper wire drawing equipment system
17DCT Medium wire complete copper wire drawing equipment system
17DCT Medium wire complete copper wire drawing equipment system
17DCT Medium wire complete copper wire drawing equipment system
17DCT Medium wire complete copper wire drawing equipment system
17DCT Medium wire complete copper wire drawing equipment system
17DCT Medium wire complete copper wire drawing equipment system

17DCT Medium wire complete copper wire drawing equipment system

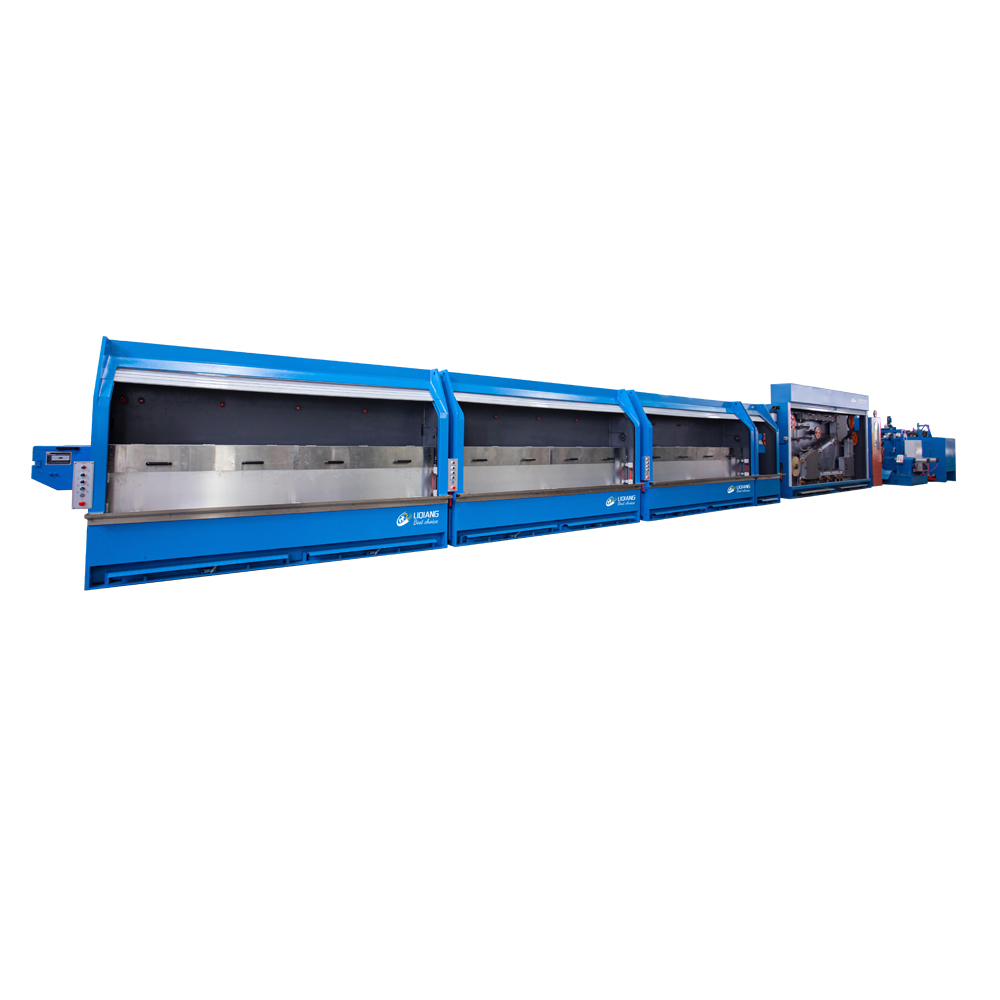

The 17DCT wire drawing machine is a specialized device designed for manufacturing copper wire. This machine consists of a pay-off stand, a drawing machine, an annealing machine, a console, and a take-up machine. It is capable of drawing copper wire from an initial diameter range of Φ3.0 - Φ3.5mm to a final diameter range of Φ0.8 - Φ2.8mm, operating at a speed of 1200m/min. Equipped with a high-precision control system, this copper wire drawing machine can produce high-quality copper wire, effectively meeting customers' demands. Moreover, it has the flexibility to manufacture copper wires in various sizes and shapes as per customers' specific requirements.
Get A Quote
  • Parameter
  • Contact Us

  • 1. Machine structure: Formed by one-piece welding.

    2. Electric control parts are sourced from top-class domestic or overseas brands.

    3. Main pedestal: Welded with A3 steel plates, and the mating parts are precisely milled to ensure the machine's precision.

    4. The high-density carbon brush features a long service life.

    5. The application of environmentally friendly paint enhances the aesthetic appeal of the machines.

    Model: 17DCT
    Usage: Bare copper wire drawing
    Inlet diameter: Φ3.0mm-Φ3.5mm
    Outlet diameter: Φ0.8-2.8mm Or Φ0.5-2.0mm
    Quantity of drawing dies: 17
    Slip ratio of main machine: 18%
    Slip ratio of last die: 12.50%
    Correction system: Automatically control
    Max. Drawing speed: 20m/s
    Using motor/ main motor: 45KW
    Dynamic control: Double frequency converters control
    Operation direction: Right hand machine
    (from Left to right)
    Colour: As customer's need
    Brand: Liqiang or OEM
    Voltage: 380V or Customized
    Brake: Pneumatic brake
