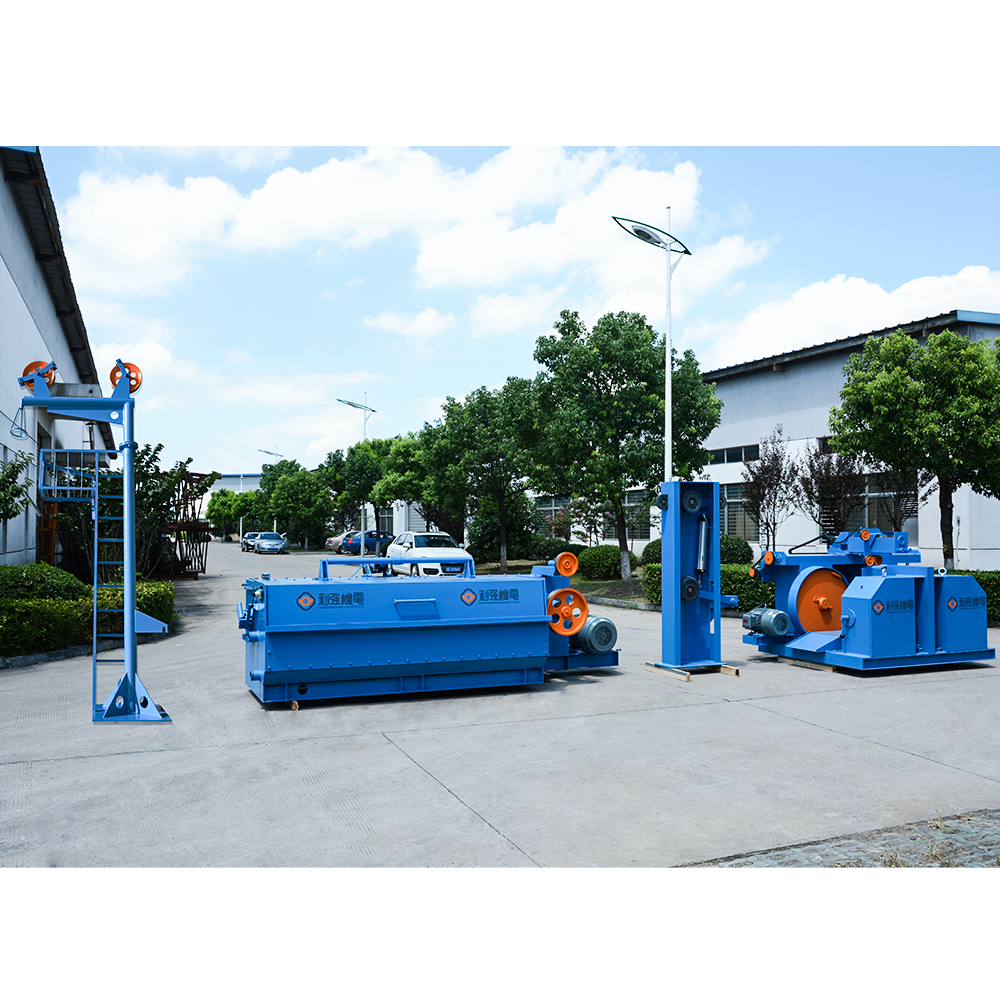

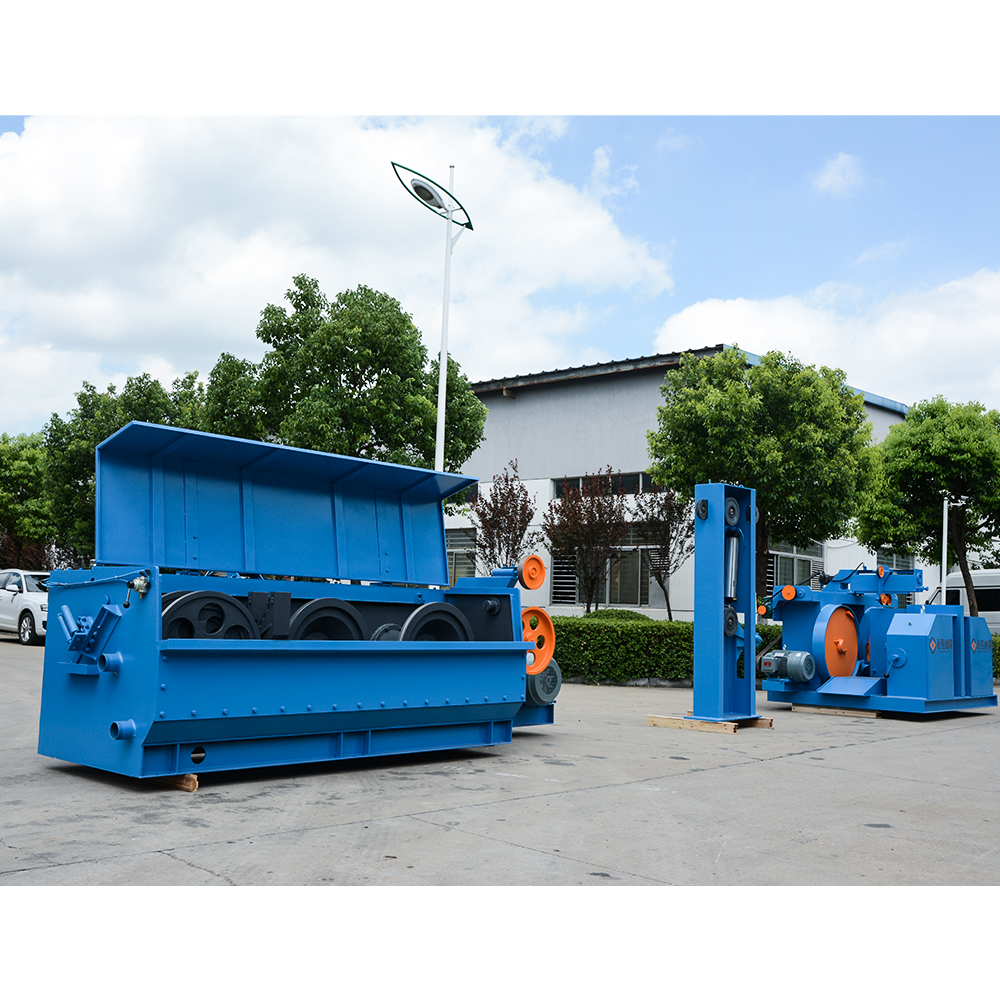

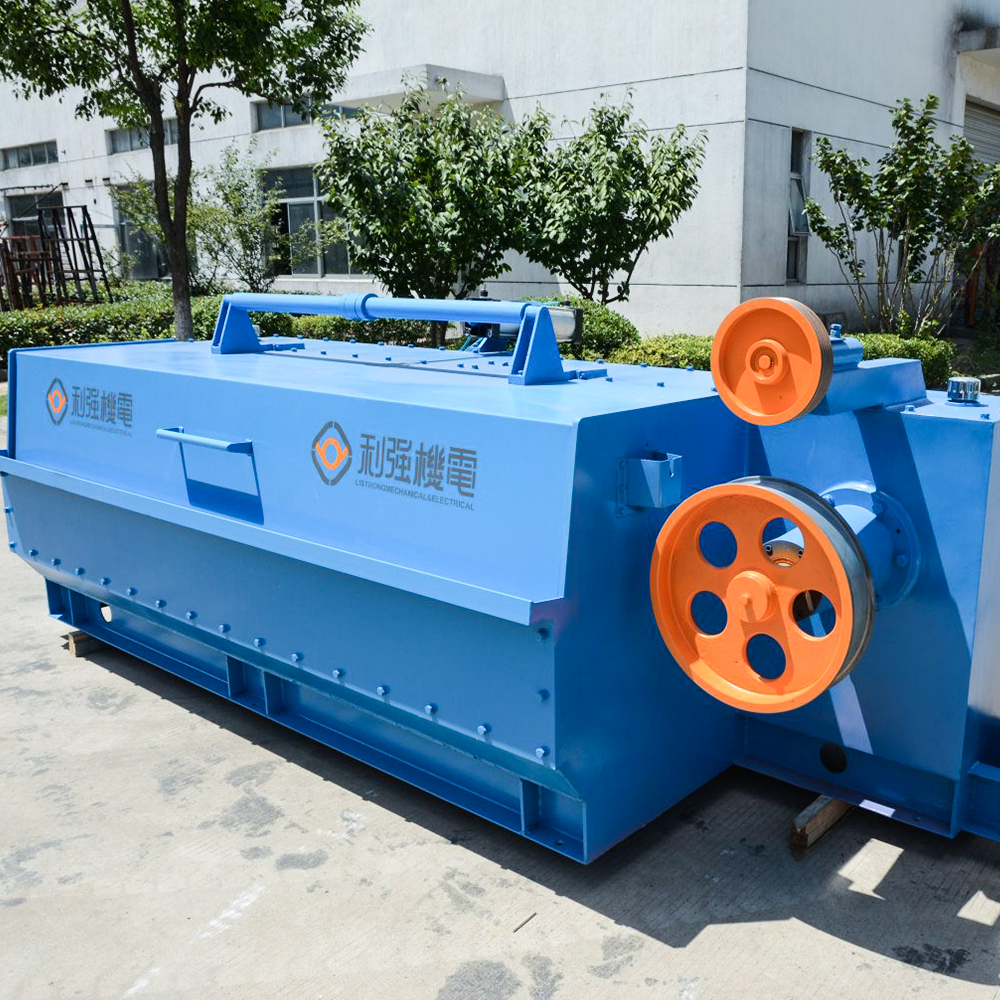

670-13DT-AL Automatic aluminum wire rod breakdown machine
670-13DT-AL Automatic aluminum wire rod breakdown machine
670-13DT-AL Automatic aluminum wire rod breakdown machine
670-13DT-AL Automatic aluminum wire rod breakdown machine
670-13DT-AL Automatic aluminum wire rod breakdown machine
670-13DT-AL Automatic aluminum wire rod breakdown machine
670-13DT-AL Automatic aluminum wire rod breakdown machine
670-13DT-AL Automatic aluminum wire rod breakdown machine
670-13DT-AL Automatic aluminum wire rod breakdown machine
670-13DT-AL Automatic aluminum wire rod breakdown machine
670-13DT-AL Automatic aluminum wire rod breakdown machine
670-13DT-AL Automatic aluminum wire rod breakdown machine

670-13DT-AL Automatic aluminum wire rod breakdown machine

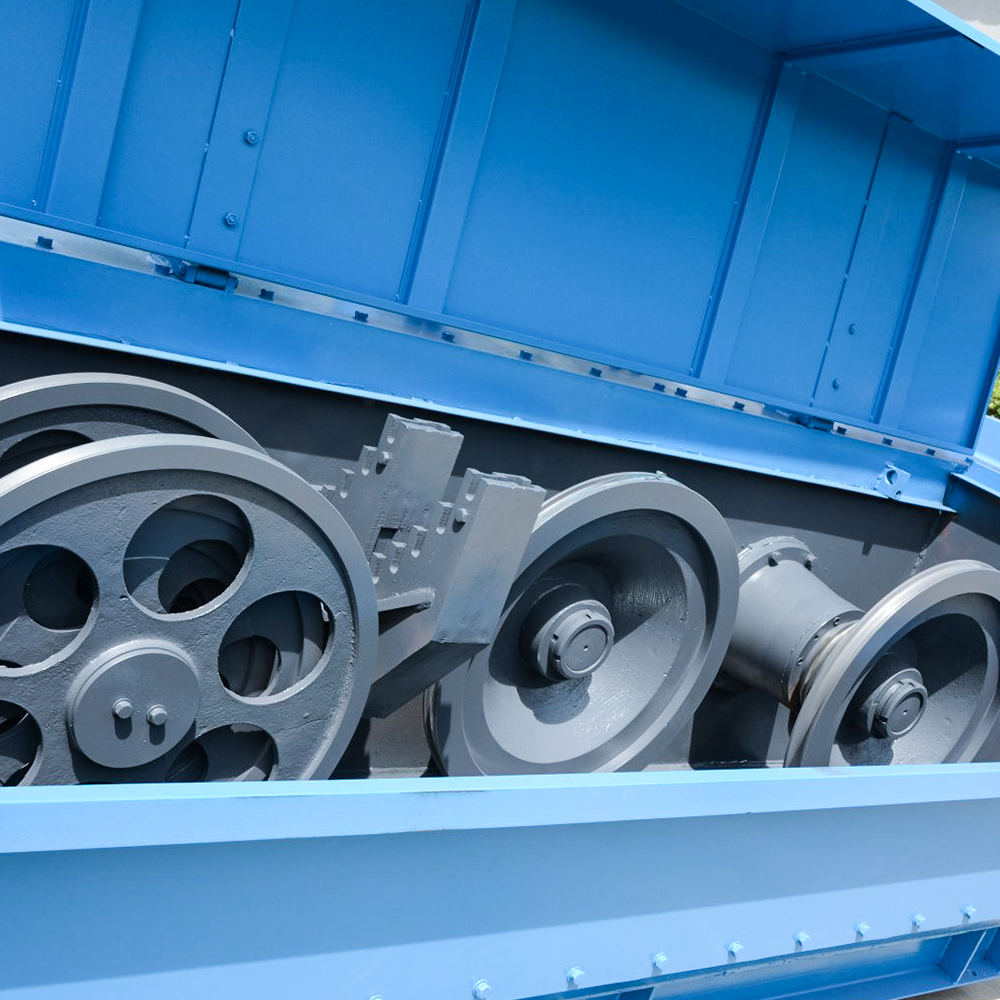

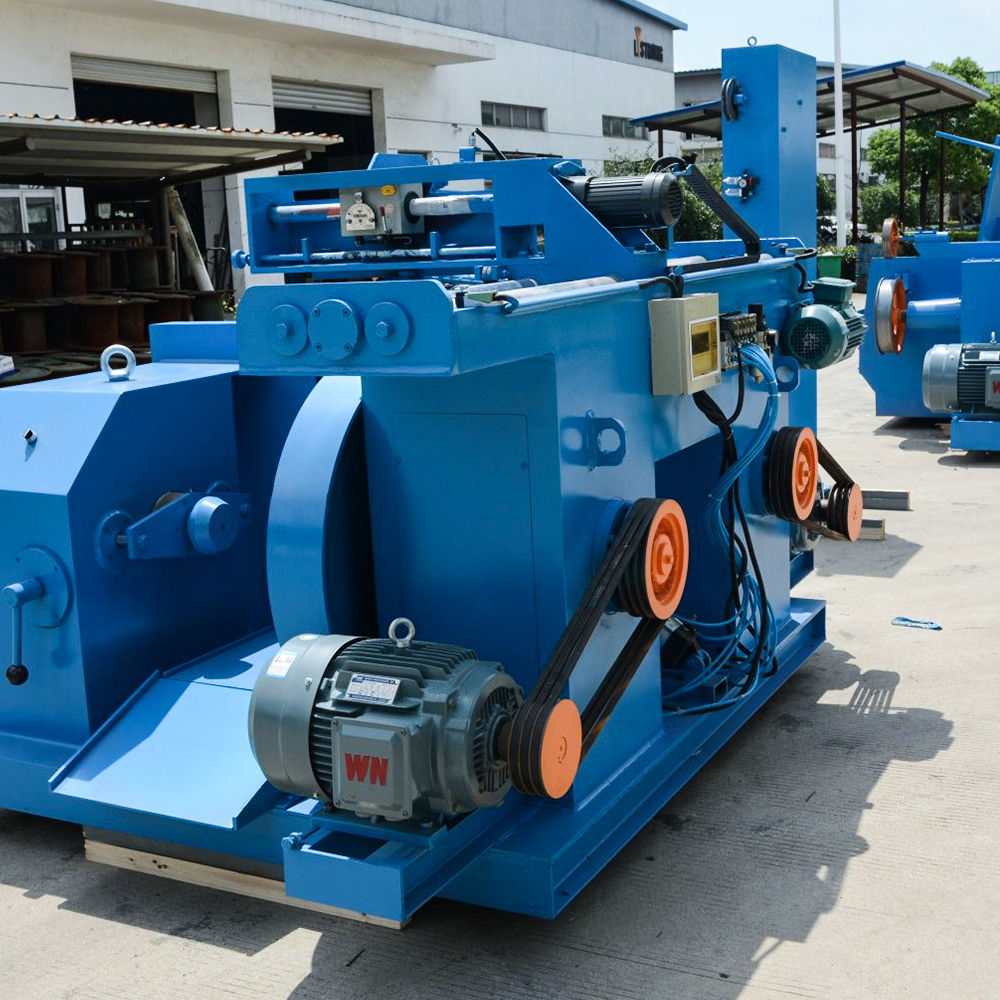

This machine is highly specialized wire-drawing equipment designed to draw aluminum rods, effectively reducing their diameter from Φ9.5mm to a diameter range of Φ1.7 - 3.5mm. It offers a series of advantages, such as a low compression ratio, the capacity for multiple-pass operations, a high drawing speed, and energy-efficient performance.   The machine's transmission structure features an independent input shaft. This input shaft, via two pairs of reduction gears and sprocket pairs, drives two tower-wheel shafts, one guide-wheel shaft, and a fixed-speed-wheel shaft. In terms of its operational modalities, the drawing method is single-side drawing, the cooling system adopts an external circulation spray-type design, and the winding mechanism is an I - shaped wheel winding machine used for coil winding.
Get A Quote
  • Parameter
  • Contact Us

  • 1. The machine features a horizontal serial structure, enabling easy replacement of drawing dies.

    2. It adopts high-precision ground helical gear transmission, which offers high efficiency and low noise.

    3. The drawing capstan has a combined design.

    4. It uses fully - immersed lubrication cooling to guarantee the quality of the wire.

    5. Environment-friendly paint is applied, ensuring that the machine surface is smoother.

    6. It provides first-class pre - sales, sales, and after-sales services.

    Model: 670-13DL-AL
    Inlet diameter: Φ9.5mm
    Outlet diameter: Φ1.7 mm ~Φ4.0mm
    Max. annealing speed: 900m/min
    Drawing motor: 90KW DC
    Diameter of drawing dies: ≤¢39mm
    Diameter of drum: Φ670mm
    Take up bobbin: PND500/630
    Max. drawing dies: 13
    Total compressing ratio: 96.80%
    Average partial compressing ratio: 23.30%
    Annealing current: 6000A
    Motor for double spooler: 30KW*2
    Motor for coiler: 22KW
    Dimension: 3300L*1100W*1300H(mm)
    Total weight: 8.6 tons
